Entry-Level Linear Hall-Effect Sensors
Block diagrams of HAL 1880 and HAL 1890

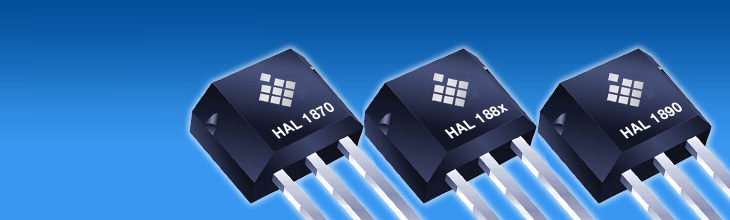

Entry-Level Linear Hall-Effect Sensors
HAL® 18xy
https://www.micronas.tdk.com/sites/default/files/svg/Block_diagrarm_HAL188x_1890.svg
https://www.micronas.tdk.com/sites/default/files/fallback/Block_diagrarm_HAL188x_1890.png
All products of this family
HAL 1870
Package: TO92UA
Ordering Code: HAL 1870UA-A
界面: PWM
Ordering Code: HAL 1870UA-A
界面: PWM
温度范围: -40°C - 170°C
Magn. Range [mT]: +-20 - +-160
Magn. Range [mT]: +-20 - +-160
HAL 1880
Package: TO92UA
Ordering Code: HAL 1880UA-A
界面: Analog, 3-Wire
Ordering Code: HAL 1880UA-A
界面: Analog, 3-Wire
温度范围: -40°C - 170°C
Magn. Range [mT]: +-20 - +-160
Magn. Range [mT]: +-20 - +-160
HAL 1881
Package: TO92UA
Ordering Code: HAL1881UA-A
界面: Analog, 3-Wire
Ordering Code: HAL1881UA-A
界面: Analog, 3-Wire
温度范围: -40°C - 170°C
Magn. Range [mT]: -50 - +50
Magn. Range [mT]: -50 - +50
HAL 1882
Package: TO92UA
Ordering Code: HAL1882UA-A
界面: Analog, 3-Wire
Ordering Code: HAL1882UA-A
界面: Analog, 3-Wire
温度范围: -40°C - 170°C
Magn. Range [mT]: -80 - +80
Magn. Range [mT]: -80 - +80
HAL 1883
Package: TO92UA
Ordering Code: HAL1883UA-A
界面: Analog, 3-Wire
Ordering Code: HAL1883UA-A
界面: Analog, 3-Wire
温度范围: -40°C - 170°C
Magn. Range [mT]: -100 - +100
Magn. Range [mT]: -100 - +100
HAL 1890
Package: TO92UA
Ordering Code: HAL1890UA-A
界面: SENT
Ordering Code: HAL1890UA-A
界面: SENT
温度范围: -40°C - 170°C
Magn. Range [mT]: +-40 - +-160
Magn. Range [mT]: +-40 - +-160
