Product Family

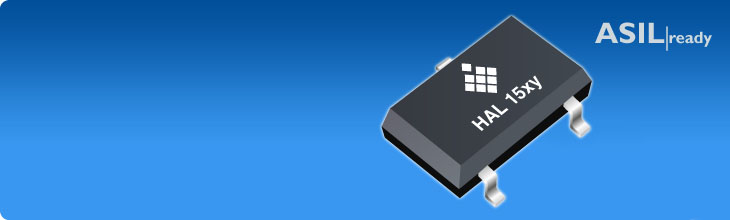

HAL® 15xy

第一款 ISO 26262合规的低能耗霍尔开关, SOT23封装。

简介

HAl 15xy系列产品是各种霍尔开关,带具有主动偏置补偿和比较器的温度补偿霍尔片,可选开漏输出或者电流输出。

作为自1993年来具有长年经验的,供应了15亿汽车开关,并且在高质量霍尔效应传感器方案拥有领先经验的霍尔开关全球供应商,Micronas用HAL 15xy系列产品扩大了其宽广的开关产品组合。

所有的CMOS晶圆处理都在Micronas的弗赖堡(德国)完成以确保最好的质量控制和最高的灵活性。

作为著名的HAL 5xy系列的升级产品,HAL 15xy有带短路保护的三线开漏输出版本和两线电流输出版本。HAL 15xy有最小的SOT23包装,提供最低能耗,快速反应时间,以及独特的安全特性,比如为客户提供高性价比的上电自检功能。

HAL 15xy有各种不同开关点的版本,广泛适用于极限环境温度境况下的汽车和工业应用。

HAL 15xy 满足最新的质量和功能安全标准,比如 AEC-Q100和ISO 26262 ASIL B 合规,这让我们的客户可以追求最高安全标准的应用。

框图 - 系统架构

HAL15xy 是一个对磁场反应的做开关动作的单体集成电路产品。如果把磁场的磁力线垂直加载于这个传感器,产品的霍尔片会按接近磁场的比例产生霍尔电压。霍尔电压与比较器里存储的临界点做比较。如果磁场缠裹临界水平,输出打开(3线版产品为开漏输出,2线版产品为电流输出)。

内置的磁滞消除震动并提供平稳的开关输出性能。“开关偏置补偿技术”可补偿机械应力带来的磁偏置。

产品可在供电电压24伏下长期工作,并能承受高达40伏的瞬间过压。

https://www.micronas.tdk.com/sites/default/files/svg/HAL15xy_Block-jh.svgHAL 15xy
https://www.micronas.tdk.com/sites/default/files/fallback/HAL15xy_Block_1500px.gifHAL 15xy

All products of this family

HAL 1501

Package: SOT23
Ordering Code: HAL 1501SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Bipolar
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 0.4 - BOFF -0.4

HAL 1501

Package: TO92UA
Ordering Code: HAL 1501UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Bipolar
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 0.4 - BOFF -0.4

HAL 1502

Package: SOT23
Ordering Code: HAL 1502SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Latching
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 2.5 - BOFF -2.5

HAL 1502

Package: TO92UA
Ordering Code: HAL 1502UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Latching
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 2.5 - BOFF -2.5

HAL 1503

Package: SOT23
Ordering Code: HAL 1503SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 5.5 - BOFF 3.7

HAL 1503

Package: TO92UA
Ordering Code: HAL 1503UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 5.5 - BOFF 3.7

HAL 1504

Package: TO92UA
Ordering Code: HAL 1504UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Latching
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 7.6 - BOFF -7.6

HAL 1504

Package: SOT23
Ordering Code: HAL 1504SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Latching
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 7.6 - BOFF -7.6

HAL 1505

Package: TO92UA
Ordering Code: HAL 1505UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Latching
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 13.5 - BOFF -13.5

HAL 1505

Package: SOT23
Ordering Code: HAL 1505SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Latching
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 13.5 - BOFF -13.5

HAL 1506

Package: SOT23
Ordering Code: HAL 1506SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 18.9 - BOFF 17.3

HAL 1506

Package: TO92UA
Ordering Code: HAL 1506UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 18.9 - BOFF 17.3

HAL 1507

Package: SOT23
Ordering Code: HAL 1507SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -300
Switching Points [mT] at 25°C:
BON 28.2 - BOFF 23.9

HAL 1507

Package: TO92UA
Ordering Code: HAL 1507UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -300
Switching Points [mT] at 25°C:
BON 28.2 - BOFF 23.9

HAL 1508

Package: SOT23
Ordering Code: HAL 1508SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON -5.5 - BOFF -3.7

HAL 1508

Package: TO92UA
Ordering Code: HAL 1508UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON -5.5 - BOFF -3.7

HAL 1509

Package: SOT23
Ordering Code: HAL 1509SU-A
界面: 3-Wire, Open-drain
Switching Behavior:
Unipolar Inverted
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 3.7 - BOFF 5.5

HAL 1509

Package: TO92UA
Ordering Code: HAL 1509UA-A
界面: 3-Wire, Open-drain
Switching Behavior:
Unipolar Inverted
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 3.7 - BOFF 5.5

HAL 1510

Package: TO92UA
Ordering Code: HAL 1510UA-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 12.0 - BOFF 7.0

HAL 1510

Package: SOT23
Ordering Code: HAL 1510SU-A
界面: 3-Wire, Open-drain
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1200
Switching Points [mT] at 25°C:
BON 12.0 - BOFF 7.0

HAL 1561

Package: TO92UA
Ordering Code: HAL 1561UA-A
界面: 2-Wire, Current source
Switching Behavior: Latching
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 4.0 - BOFF -4.0

HAL 1561

Package: SOT23
Ordering Code: HAL 1561SU-A
界面: 2-Wire, Current source
Switching Behavior: Latching
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 4.0 - BOFF -4.0

HAL 1562

Package: SOT23
Ordering Code: HAL 1562SU-A
界面: 2-Wire, Current source
Switching Behavior: Latching
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 12.0 - BOFF -12.0

HAL 1562

Package: TO92UA
Ordering Code: HAL 1562UA-A
界面: 2-Wire, Current source
Switching Behavior: Latching
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 12.0 - BOFF -12.0

HAL 1563

Package: SOT23
Ordering Code: HAL 1563SU-A
界面: 2-Wire, Current source
Switching Behavior:
Unipolar Inverted
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 7.6 - BOFF 9.4

HAL 1563

Package: TO92UA
Ordering Code: HAL 1563UA-A
界面: 2-Wire, Current source
Switching Behavior:
Unipolar Inverted
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 7.6 - BOFF 9.4

HAL 1564

Package: TO92UA
Ordering Code: HAL 1564UA-A
界面: 2-Wire, Current source
Switching Behavior:
Unipolar Inverted
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 4.1 - BOFF 6.0

HAL 1564

Package: SOT23
Ordering Code: HAL 1564SU-A
界面: 2-Wire, Current source
Switching Behavior:
Unipolar Inverted
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 4.1 - BOFF 6.0

HAL 1565

Package: TO92UA
Ordering Code: HAL 1565UA-A
界面: 2-Wire, Current source
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 6.0 - BOFF 4.1

HAL 1565

Package: SOT23
Ordering Code: HAL 1565SU-A
界面: 2-Wire, Current source
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Temperature Coefficient [ppm/K]: -1000
Switching Points [mT] at 25°C:
BON 6.0 - BOFF 4.1

HAL 1566

Package: TO92UA
Ordering Code: HAL 1566UA-A
界面: 2-Wire, Current source
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 9.4 - BOFF 7.6

HAL 1566

Package: SOT23
Ordering Code: HAL 1566SU-A
界面: 2-Wire, Current source
Switching Behavior: Unipolar
温度范围: -40°C - 170°C
Switching Points [mT] at 25°C:
BON 9.4 - BOFF 7.6
