TDK launches dual-output 3D Hall-effect switch family for precise motor speed and direction sensing

• Dual-output 3D Hall-effect switch for speed and direction sensing in automotive and industrial applications
• Flexible sensor placement with 3D HAL technology and phase-independent signal generation
• Robust design with ASIL B readiness, extended temperature range, and strong EMC resilience

May 28, 2026

TDK Corporation (TSE:6762) introduces the Micronas HAL 13xy family, a factory-programmable Hall-effect switch sensor designed for speed and direction detection in automotive and industrial applications. Leveraging TDK-Micronas’ proven 3D HAL technology, HAL 13xy features three orthogonal Hall elements (X, Y, Z) arranged in a pixel cell, providing 90° phase separation (quadrature signal) that is inherently independent of magnet pole spacing and air gap. This design enables the simultaneous measurement of two magnetic-field components, offering manufacturers maximum flexibility in sensor and magnet placement.

For the automotive sector, the HAL 13xy family can be employed in applications such as seat-track motors, sunroof drives, tailgate motors, valve position, steering column motors, steering turn-count sensing, and window lifters with anti-pinch functionality. *
Start of production is planned for October 2026. Samples are already available.

HAL 13xy delivers two independent open-drain outputs, which can be configured for quadrature speed/speed or speed/direction signals. This flexible output configuration supports compact electric motor control in applications that require precise, reliable, and space-saving sensing technology. With its robust design and versatile outputs, HAL 13xy helps enable smooth motion control, high safety standards, and enhanced user comfort.

Designed for robustness and long-term reliability, HAL 13xy operates from –40 °C to 170 °C junction temperature, supports a wide supply voltage range from 3.0 V to 24 V, and provides strong protection features, including 40 V load dump robustness, -18 V reverse-voltage protection, and short-circuit/thermal protection. The device maintains constant switching points across supply voltage and temperature variations, ensuring stable performance in demanding environments. It is qualified to AEC-Q100 standards for automotive electronics and offers high EMC resilience according to ISO and IEC requirements.

As a Safety Element out of Context (SEooC), and with integrated continuous built-in self-test (BIST), HAL 13xy is ASIL B ready in accordance with ISO 26262, making it suitable for integration into automotive safety-related systems. The sensor operates with both static and dynamic magnetic fields up to 40 kHz and is compatible with a variety of ferrite and rear-earth magnet types, thanks to multiple temperature coefficient options.

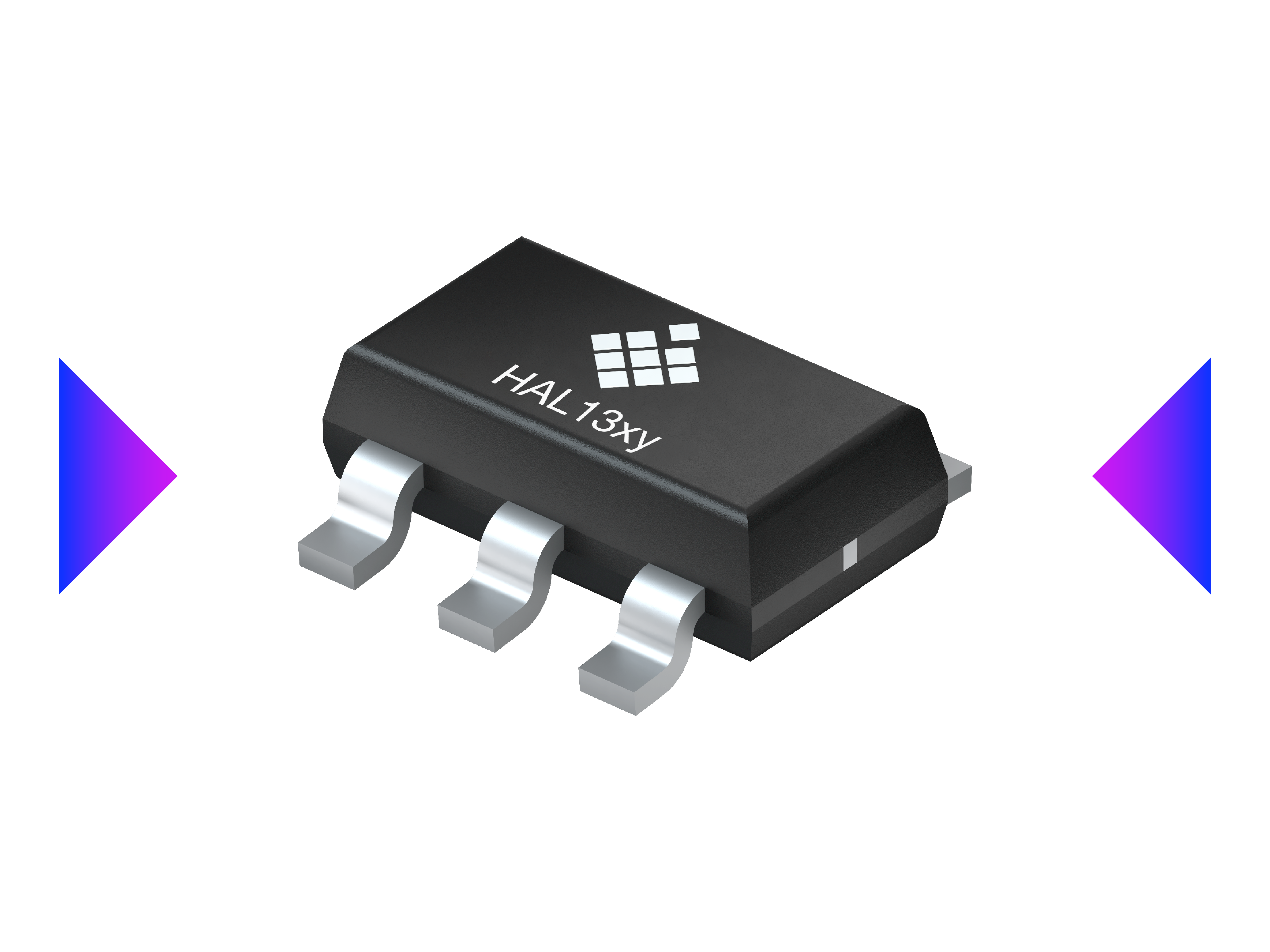

With its compact 5-pin SOT23 package, high ESD robustness (up to 4 kV HBM), and configurable sensing axes, the HAL 13xy family gives engineers a versatile and cost-effective solution for precise motor control and position detection in space-constrained automotive and industrial applications.

Glossary

• 3D HAL technology: TDK-Micronas’ proprietary 3D Hall-effect sensing technology with three orthogonal Hall elements for flexible magnetic-field measurement
• Quadrature outputs: Two signals with a 90° phase difference used for precise speed and direction detection

Main applications*

• Seat-track motors
• Sunroof motors
• Tailgate motors
• Valve position
• Steering column motors
• Steering turn-count sensing
• Window lifters with anti-pinch functionality

Main features and benefits**

• Dual-output 3D Hall-effect switch for simultaneous measurement of two orthogonal magnetic-field components
• Flexible sensor and magnet placement, independent of pole spacing and air gap
• Configurable for quadrature (speed/speed) or speed/direction outputs
• Wide supply voltage range from 3.0 V to 24 V
• Operation from –40 °C to 170 °C junction temperature
• 40 V load dump robustness and -18 V reverse-voltage protection
• Continuous built-in self-test (BIST) and short-circuit/thermal protection
• High EMC performance compliant with ISO and IEC standards
• High ESD robustness up to 4 kV HBM
• Compact 5-pin SOT23 package
• Qualified to AEC-Q100 automotive standard
• SEooC ASIL B-ready according to ISO 26262

* Any mention of target applications for our products is made without a claim for fit for purpose as this has to be checked at system level.
** All operating parameters must be validated for each customer application by customer’s technical experts.
